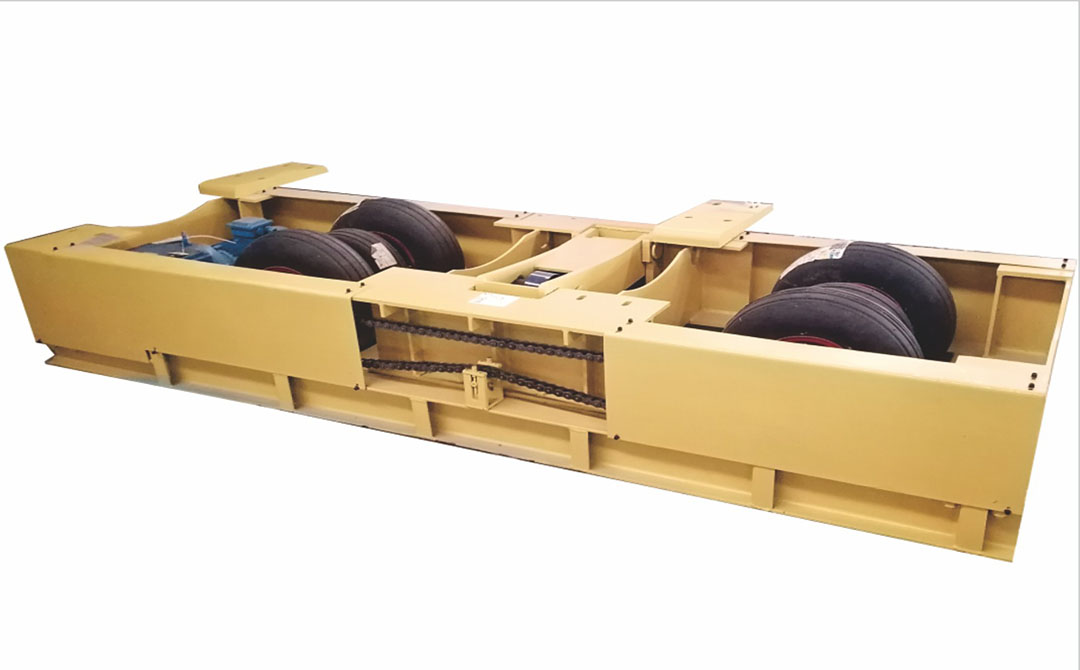

ناقلة الأنابيب
وظيفة المنتج: تتكون ناقل سلسلة الحبال من هيكل وعربة وسلسلة ومحرك وما إلى ذلك، مع الماكينة الدوارة لتحقيق النقل التلقائي للأكوام الدوارة.
تسليط الضوء على المنتج: تحقيق أتمتة نقل كومة الأنابيب، وتحسين كفاءة الإنتاج، والحد من كثافة عمل الموظفين.
المعلمة الفنية
| Technical Parameter | ||||||||||||||
| Equipment name | Applicable pile types | Optional forms | Overall dimensions (length * width * height) | Whole machine weight | Brand/specification of deceleration motor | Motor Power | Motor speed | Reduction ratio | Oil cylinder brand/specification | Lifting stroke/time | Running speed | Running direction | Installation spacing | Product legend |
| Conveyor | Pipe pileφ300-600 | Standard/Top up type | 0.9*0.7*0. | 250kg | Speed Borel/ | 1.5KW | 1440 | 48.89 | φ100*70*140 | 140mm | 16m/min | Reversible | 3m | |
| GKA57- | ||||||||||||||
| Y1.5-4P- | ||||||||||||||
| Empty square□300-500 | Standard/Top up type | 2.55*1.03*0 | 750kg | XWD5-59- | 4KW | 1440 | 59 | No | No | 16m/min | ||||
| 0.89 | 4KW | |||||||||||||
| Equipment relationship before and after the production line: | The equipment for transporting finished piles to the yard is set up at the end of the assembly line in the workshop. Lift the pile from the pile feeding chain machine using a top up rubber roller machine, and then transport it to the yard for lifting and stacking. | |||||||||||||
| Consumable parts | ||||||||||||||
| Part name | Design usage duration | Damage form | General maintenance methods | Maintenance cycle | ||||||||||
| 1 | rubber covered roll | 1 year | Wear and tear on the contact surface with the pipe pile | Clean the surface dirt | 1 week | |||||||||
| 2 | Spherical roller bearing 22211 | 2 years | 1. Wear between the bearing raceway and the rolling body 2. Deformation of the cage | Replace the bearing with a new one | 1 year | |||||||||
| 3 | Spherical roller bearing 22212 | 2 years | 1. Wear between the bearing raceway and the rolling body 2. Deformation of the cage | Replace the bearing with a new one | 1 year | |||||||||
| 4 | chain wheel | 2 years | 1. Wear on the contact surface between the sprocket and the chain | Spray lubricating oil and clean surface dirt | one month | |||||||||
